VM-6320 Professional Vibration Meter and Analyzer with 0.1~199.9 M/S2 Acceleration Range, 10 Hz ~ 10k Hz Frequency, and 5% Accuracy

MOQ : 1

Price : negotiable

Brand Name : Bestone

Model Number : VM-6320

Certification : CE, ROHS,ISO

Place of Origin : CHINA

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : more than 1000pcs per month

Delivery Time : 5-8 working days

Packaging Details : pp box and white box and outer carton

Model NO. : VM-6320

Sensor : Piezoelectric Accelerometer

Measuring Range : Acceleration: 0.1~200 M/S2

Frequency Range : Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz

Accuracy : 5 %&Nbsp;of Reading+2 Digits

Transport Package : Gift Box and Carrying Case

Specification : CE, ROHS

Trademark : BESTONE

Origin : China

HS Code : 9031809090

Production Capacity : 500000pieces/Year

Contact Now

Universal Vibration Meter Professional Vibration Analyser (VM-6320)
Applications

Designed for measuring periodic motion to detect imbalance and deflection in moving machinery. Provides essential data for quality control, runtime monitoring, and equipment maintenance. The VM-6360 model features a wide frequency range (10Hz~10kHz) in acceleration mode, while the VM-6320/VM-6310 models offer simplified operation.

Key Features
  • Compliant with ISO 2954 for periodic measurements and detection of mechanical faults
  • Optimized for on-site vibration measurement in rotating machinery
  • High-quality accelerometer ensures accurate, repeatable measurements
  • Optional headphones available for use as electronic stethoscope
  • RS-232 data output for PC connectivity
  • Bluetooth data output option available
Vibration Standard

ISO/IS2373 Motor Quality Standard According As Vibration Velocity

Quality Rank Rev(rpm) H:high of shaft(mm) Maximum vibration velocity rms(mm/s)
Normal 600~3600 80<H<132 1.8
132<H<225 2.8
Good(R) 600~1800 80<H<132 0.71
132<H<225 1.12
1800~3600 80<H<132 1.12
132<H<225 1.8
Technical Specifications
Sensor:Piezoelectric Transducer
Measuring Range:
Acceleration: 0.1~199.9m/s² Equivalent Peak
Velocity: 0.01~199.9mm/s True RMS
Displacement: 0.001~1.999mm Equivalent Peak-peak
Frequency Range:
Acceleration: 10Hz~10kHz
Velocity: 10Hz~1kHz
Displacement: 10Hz~1kHz
Accuracy:5% of Reading + 2 digits
Operating Conditions:
Temperature: 0~50ºC
Humidity: <90%RH
Power Supply: 4x1.5V AA(UM-3)Battery
Dimensions: 160x68x32mm
Weight: 181g (Not Including Batteries)

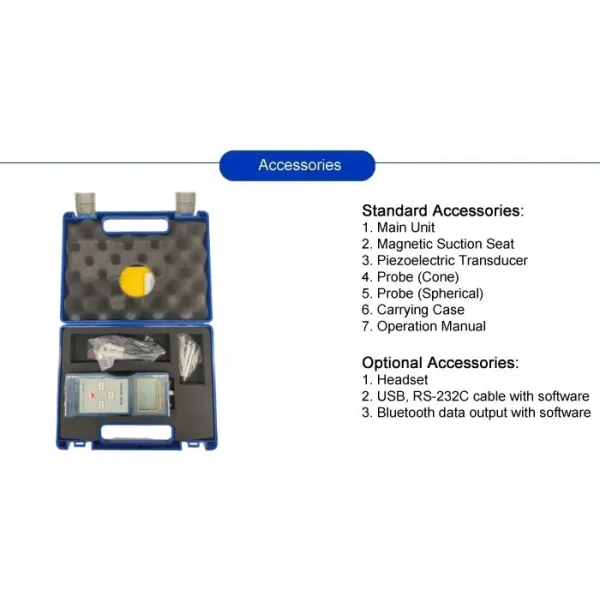

Standard Accessories
  • Main Unit
  • Piezoelectric Transducer
  • Powerful Rare Earth Magnet
  • Probe (Cone) & Probe (Spherical)
  • Carrying Case (B04)
  • Manual Book
Optional Accessories
  • Headset
  • RS-232C Data Cable with Software
  • Bluetooth Data Adapter with Software
